QIIME + Phyloseq + MicrobiotaProcess (v1)

gene_x 0 like s 438 view s

Tags: R, processing, metagenomics, 16S, pipeline

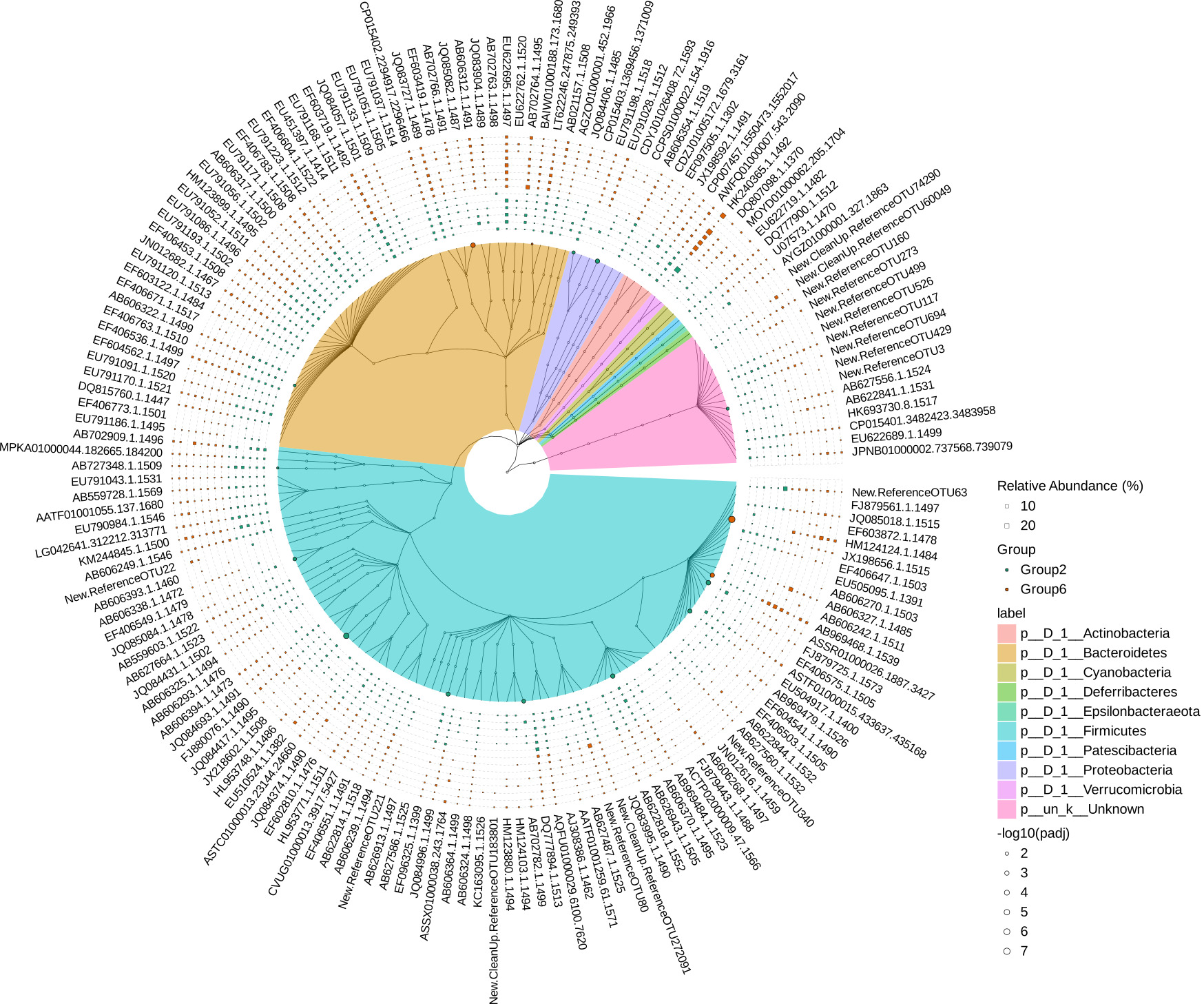

diff_analysis_Group2_vs_Group6

# https://bioconductor.org/packages/release/bioc/vignettes/MicrobiotaProcess/inst/doc//MicrobiotaProcess.html

# -----------------------------------
# ---- prepare the R environment ----
#Rscript MicrobiotaProcess.R
#NOTE: exit R script, then login again R-environment; rm -rf Phyloseq*_cache
#mkdir figures
rmarkdown::render('Phyloseq.Rmd',output_file='Phyloseq.html')

# with #alpha = 2.0, running the following script further!

# -----------------------------
# ---- 3.1. bridges other tools
##https://github.com/YuLab-SMU/MicrobiotaProcess
##https://www.bioconductor.org/packages/release/bioc/vignettes/MicrobiotaProcess/inst/doc/MicrobiotaProcess.html
##https://chiliubio.github.io/microeco_tutorial/intro.html#framework
##https://yiluheihei.github.io/microbiomeMarker/reference/plot_cladogram.html
#BiocManager::install("MicrobiotaProcess")
#install.packages("microeco")
#install.packages("ggalluvial")
#install.packages("ggh4x")

library(MicrobiotaProcess)
library(microeco)
library(ggalluvial)
library(ggh4x)
library(gghalves)

## Convert the phyloseq object to a MicrobiotaProcess object
#mp <- as.MicrobiotaProcess(ps.ng.tax)

#mt <- phyloseq2microeco(ps.ng.tax) #--> ERROR
#abundance_table <- mt$abun_table
#taxonomy_table <- mt$tax_table

#ps.ng.tax_abund <- phyloseq::filter_taxa(ps.ng.tax, function(x) sum(x > total*0.01) > 0, TRUE)
#ps.ng.tax_most = phyloseq::filter_taxa(ps.ng.tax_rel, function(x) mean(x) > 0.001, TRUE)

##OPTION1 (NOT_USED): take all samples, prepare ps.ng.tax_abund --> mpse_abund
##mpse <- ps.ng.tax %>% as.MPSE()
#mpse_abund <- ps.ng.tax_abund %>% as.MPSE()



##OPTION2 (USED!): take partial samples, prepare ps.ng.tax or ps.ng.tax_abund (2 replacements!)--> ps.ng.tax_sel --> mpse_abund
ps.ng.tax_sel <- ps.ng.tax_abund

##otu_table(ps.ng.tax_sel) <- otu_table(ps.ng.tax)[,c("1","2","5","6","7",  "15","16","17","18","19","20",  "29","30","31","32",  "40","41","42","43","44","46")]
##NOTE: Only choose Group2, Group4, Group6, Group8
#> ps.ng.tax_sel
#otu_table()   OTU Table:         [ 37465 taxa and 29 samples ]
#sample_data() Sample Data:       [ 29 samples by 10 sample variables ]
#tax_table()   Taxonomy Table:    [ 37465 taxa by 7 taxonomic ranks ]
#phy_tree()    Phylogenetic Tree: [ 37465 tips and 37461 internal nodes ]
#-Group4: "21","22","23","24","25","26","27","28",
#-Group8: ,  "47","48","49","50","52","53","55"
otu_table(ps.ng.tax_sel) <- otu_table(ps.ng.tax_abund)[,c("8","9","10","12","13","14",  "33","34","35","36","37","38","39","51")]
mpse_abund <- ps.ng.tax_sel %>% as.MPSE()
# A MPSE-tibble (MPSE object) abstraction: 2,352 × 20
# NOTE mpse_abund contains 20 variables: OTU, Sample, Abundance, BarcodeSequence, LinkerPrimerSequence, FileInput, Group,
#   Sex_age <chr>, pre_post_stroke <chr>, Conc <dbl>, Vol_50ng <dbl>, Vol_PCR <dbl>, Description <chr>,
#   Domain <chr>, Phylum <chr>, Class <chr>, Order <chr>, Family <chr>, Genus <chr>, Species <chr>



# -----------------------------------
# ---- 3.2. alpha diversity analysis
# Rarefied species richness + RareAbundance
mpse_abund %<>% mp_rrarefy()
# 'chunks' represent the split number of each sample to calculate alpha
# diversity, default is 400. e.g. If a sample has total 40000
# reads, if chunks is 400, it will be split to 100 sub-samples
# (100, 200, 300,..., 40000), then alpha diversity index was
# calculated based on the sub-samples.
# '.abundance' the column name of abundance, if the '.abundance' is not be
# rarefied calculate rarecurve, user can specific 'force=TRUE'.
mpse_abund %<>%
    mp_cal_rarecurve(
        .abundance = RareAbundance,
        chunks = 400
    )
# The RareAbundanceRarecurve column will be added the colData slot
# automatically (default action="add")
#NOTE mpse_abund contains 22 varibles = 20 varibles + RareAbundance <dbl> + RareAbundanceRarecurve <list>




# default will display the confidence interval around smooth.
# se=TRUE
# NOTE that two colors #c("#00A087FF", "#3C5488FF") for .group = pre_post_stroke; four colors c("#1f78b4", "#33a02c", "#e31a1c", "#6a3d9a") for .group = Group;
p1 <- mpse_abund %>%
      mp_plot_rarecurve(
        .rare = RareAbundanceRarecurve,
        .alpha = Observe,
      )

p2 <- mpse_abund %>%
      mp_plot_rarecurve(
        .rare = RareAbundanceRarecurve,
        .alpha = Observe,
        .group = Group
      ) +
      scale_color_manual(values=c("#1f78b4", "#e31a1c")) +
      scale_fill_manual(values=c("#1f78b4", "#e31a1c"), guide="none")

# combine the samples belong to the same groups if plot.group=TRUE
p3 <- mpse_abund %>%
      mp_plot_rarecurve(
        .rare = RareAbundanceRarecurve,
        .alpha = "Observe",
        .group = Group,
        plot.group = TRUE
      ) +
      scale_color_manual(values=c("#1f78b4", "#e31a1c")) +
      scale_fill_manual(values=c("#1f78b4", "#e31a1c"),guide="none")

png("rarefaction_of_samples_or_groups.png", width=1080, height=600)
p1 + p2 + p3
dev.off()



# ------------------------------------------
# 3.3. calculate alpha index and visualization
library(ggplot2)
library(MicrobiotaProcess)
mpse_abund %<>%
    mp_cal_alpha(.abundance=RareAbundance)
mpse_abund
#NOTE mpse_abund contains 28 varibles = 22 varibles + Observe <dbl>, Chao1 <dbl>, ACE <dbl>, Shannon <dbl>, Simpson <dbl>, Pielou <dbl>


f1 <- mpse_abund %>%
      mp_plot_alpha(
        .group=Group,
        .alpha=c(Observe, Chao1, ACE, Shannon, Simpson, Pielou)
      ) +
      scale_fill_manual(values=c("#1f78b4", "#e31a1c"), guide="none") +
      scale_color_manual(values=c("#1f78b4", "#e31a1c"), guide="none")

f2 <- mpse_abund %>%
      mp_plot_alpha(
        .alpha=c(Observe, Chao1, ACE, Shannon, Simpson, Pielou)
      )

#ps.ng.tax_sel contais only pre samples --> f1 cannot be generated!
png("alpha_diversity_comparison.png", width=1400, height=600)
f1 / f2
dev.off()


# -------------------------------------------
# 3.4. The visualization of taxonomy abundance (Class)
mpse_abund %<>%
    mp_cal_abundance( # for each samples
      .abundance = RareAbundance
    ) %>%
    mp_cal_abundance( # for each groups
      .abundance=RareAbundance,
      .group=Group
    )
mpse_abund
#NOTE mpse_abund contains 29 varibles = 28 varibles + RelRareAbundanceBySample <dbl>

# visualize the relative abundance of top 20 phyla for each sample.
#           .group=time,
p1 <- mpse_abund %>%
        mp_plot_abundance(
          .abundance=RareAbundance,
          taxa.class = Class,
          topn = 20,
          relative = TRUE
        )
# visualize the abundance (rarefied) of top 20 phyla for each sample.
#            .group=time,
p2 <- mpse_abund %>%
          mp_plot_abundance(
            .abundance=RareAbundance,
            taxa.class = Class,
            topn = 20,
            relative = FALSE
          )
png("relative_abundance_and_abundance.png", width= 1200, height=600) #NOT PRODUCED!
p1 / p2
dev.off()


#----
h1 <- mpse_abund %>%
        mp_plot_abundance(
          .abundance = RareAbundance,
          .group = Group,
          taxa.class = Class,
          relative = TRUE,
          topn = 20,
          geom = 'heatmap',
          features.dist = 'euclidean',
          features.hclust = 'average',
          sample.dist = 'bray',
          sample.hclust = 'average'
        )

h2 <- mpse_abund %>%
          mp_plot_abundance(
            .abundance = RareAbundance,
            .group = Group,
            taxa.class = Class,
            relative = FALSE,
            topn = 20,
            geom = 'heatmap',
            features.dist = 'euclidean',
            features.hclust = 'average',
            sample.dist = 'bray',
            sample.hclust = 'average'
          )
# the character (scale or theme) of figure can be adjusted by set_scale_theme
# refer to the mp_plot_dist
png("relative_abundance_and_abundance_heatmap.png", width= 1200, height=600)
aplot::plot_list(gglist=list(h1, h2), tag_levels="A")
dev.off()

# visualize the relative abundance of top 20 class for each .group (Group)
p3 <- mpse_abund %>%
        mp_plot_abundance(
            .abundance=RareAbundance,
            .group=Group,
            taxa.class = Class,
            topn = 20,
            plot.group = TRUE
          )

# visualize the abundance of top 20 phyla for each .group (time)
p4 <- mpse_abund %>%
          mp_plot_abundance(
            .abundance=RareAbundance,
            .group= Group,
            taxa.class = Class,
            topn = 20,
            relative = FALSE,
            plot.group = TRUE
          )
png("relative_abundance_and_abundance_groups.png", width= 1000, height=1000)
p3 / p4
dev.off()




# ---------------------------
# 3.5. Beta diversity analysis

# ---------------------------------------------
# 3.5.1 The distance between samples or groups
# standardization
# mp_decostand wraps the decostand of vegan, which provides
# many standardization methods for community ecology.
# default is hellinger, then the abundance processed will
# be stored to the assays slot.
mpse_abund %<>%
    mp_decostand(.abundance=Abundance)
mpse_abund
#NOTE mpse_abund contains 30 varibles = 29 varibles + hellinger <dbl>


# calculate the distance between the samples.
# the distance will be generated a nested tibble and added to the
# colData slot.
mpse_abund %<>% mp_cal_dist(.abundance=hellinger, distmethod="bray")
mpse_abund
#NOTE mpse_abund contains 31 varibles = 30 varibles + bray <list>

# mp_plot_dist provides there methods to visualize the distance between the samples or groups
# when .group is not provided, the dot heatmap plot will be return
p1 <- mpse_abund %>% mp_plot_dist(.distmethod = bray)
png("distance_between_samples.png", width= 1000, height=1000)
p1
dev.off()

# when .group is provided, the dot heatmap plot with group information will be return.
p2 <- mpse_abund %>% mp_plot_dist(.distmethod = bray, .group = Group)
# The scale or theme of dot heatmap plot can be adjusted using set_scale_theme function.
p2 %>% set_scale_theme(
          x = scale_fill_manual(
                values=c("#1f78b4", "#e31a1c"),  #c("orange", "deepskyblue"),
                guide = guide_legend(
                            keywidth = 1,
                            keyheight = 0.5,
                            title.theme = element_text(size=8),
                            label.theme = element_text(size=6)
                )
              ),
          aes_var = Group # specific the name of variable
      ) %>%
      set_scale_theme(
          x = scale_color_gradient(
                guide = guide_legend(keywidth = 0.5, keyheight = 0.5)
              ),
          aes_var = bray
      ) %>%
      set_scale_theme(
          x = scale_size_continuous(
                range = c(0.1, 3),
                guide = guide_legend(keywidth = 0.5, keyheight = 0.5)
              ),
          aes_var = bray
      )
png("distance_between_samples_with_group_info.png", width= 1000, height=1000)
p2
dev.off()

# when .group is provided and group.test is TRUE, the comparison of different groups will be returned
# Assuming p3 is a ggplot object after mp_plot_dist call
p3 <- mpse_abund %>%
      mp_plot_dist(.distmethod = bray, .group = Group, group.test = TRUE, textsize = 6) +
      theme(
        axis.title.x = element_text(size = 14),  # Customize x-axis label  face = "bold"
        axis.title.y = element_text(size = 14),  # Customize y-axis label
        axis.text.x = element_text(size = 14),  # Customize x-axis ticks
        axis.text.y = element_text(size = 14)   # Customize y-axis ticks
      )

# Save the plot with the new theme settings
png("Comparison_of_Bray_Distances.png", width = 1000, height = 1000)
print(p3)  # Ensure that p3 is explicitly printed in the device
dev.off()


# Extract Bray-Curtis Distance Values and save them in a Excel-table.
library(dplyr)
library(tidyr)
library(openxlsx)

# Define the sample numbers vector
sample_numbers <- c("8", "9", "10", "12", "13", "14", "33", "34", "35", "36", "37", "38", "39", "51")

# Consolidate the list of tibbles using the actual sample numbers
bray_data <- bind_rows(
  lapply(seq_along(mpse_abund$bray), function(i) {
    tibble(
      Sample1 = sample_numbers[i],  # Use actual sample number
      Sample2 = mpse_abund$bray[[i]]$braySampley,
      BrayDistance = mpse_abund$bray[[i]]$bray
    )
  }),
  .id = "PairID"
)

# Print the data frame to check the output
print(bray_data)

# Write the data frame to an Excel file
write.xlsx(bray_data, file = "Bray_Curtis_Distances.xlsx")
#DELETE the column "PairID" in Excel file



# -----------------------
# 3.5.2 The PCoA analysis

#install.packages("corrr")
library(corrr)
#install.packages("ggside")
library(ggside)
mpse_abund %<>%
    mp_cal_pcoa(.abundance=hellinger, distmethod="bray")
# The dimensions of ordination analysis will be added the colData slot (default).
mpse_abund
mpse_abund %>% print(width=380, n=2)
#NOTE mpse_abund contains 34 varibles = 31 varibles + `PCo1 (30.16%)` <dbl>, `PCo2 (15.75%)` <dbl>, `PCo3 (10.53%)` <dbl>
#BUG why 36 variables in mpse_abund %>% print(width=380, n=1) [RareAbundanceBySample <list>, RareAbundanceByGroup <list>]


#> methods(class=class(mpse_abund))
# [1] [                        [[<-                     [<-
# [4] $                        $<-                      arrange
# [7] as_tibble                as.data.frame            as.phyloseq
#[10] coerce                   coerce<-                 colData<-
#[13] distinct                 filter                   group_by
#[16] left_join                mp_adonis                mp_aggregate_clade
#[19] mp_aggregate             mp_anosim                mp_balance_clade
#[22] mp_cal_abundance         mp_cal_alpha             mp_cal_cca
#[25] mp_cal_clust             mp_cal_dca               mp_cal_dist
#[28] mp_cal_nmds              mp_cal_pca               mp_cal_pcoa
#[31] mp_cal_pd_metric         mp_cal_rarecurve         mp_cal_rda
#[34] mp_cal_upset             mp_cal_venn              mp_decostand
#[37] mp_diff_analysis         mp_diff_clade            mp_envfit
#[40] mp_extract_abundance     mp_extract_assays        mp_extract_dist
#[43] mp_extract_feature       mp_extract_internal_attr mp_extract_rarecurve
#[46] mp_extract_refseq        mp_extract_sample        mp_extract_taxonomy
#[49] mp_extract_tree          mp_filter_taxa           mp_mantel
#[52] mp_mrpp                  mp_plot_abundance        mp_plot_alpha
#[55] mp_plot_diff_boxplot     mp_plot_diff_res         mp_plot_dist
#[58] mp_plot_ord              mp_plot_rarecurve        mp_plot_upset
#[61] mp_plot_venn             mp_rrarefy               mp_select_as_tip
#[64] mp_stat_taxa             mutate                   otutree
#[67] otutree<-                print                    pull
#[70] refsequence              refsequence<-            rename
#[73] rownames<-               select                   show
# [ reached getOption("max.print") -- omitted 6 entries ]
#see '?methods' for accessing help and source code


# We also can perform adonis or anosim to check whether it is significant to the dissimilarities of groups.
mpse_abund %<>%
    mp_adonis(.abundance=hellinger, .formula=~Group, distmethod="bray", permutations=9999, action="add")
mpse_abund %>% mp_extract_internal_attr(name=adonis)
#NOTE mpse_abund contains 34 varibles, no new variable, it has been saved in mpse_abund and can be extracted with "mpse_abund %>% mp_extract_internal_attr(name='adonis')"

#The result of adonis has been saved to the internal attribute !
#It can be extracted using this-object %>% mp_extract_internal_attr(name='adonis')
#The object contained internal attribute: PCoA ADONIS
#Permutation test for adonis under reduced model
#Terms added sequentially (first to last)
#Permutation: free
#Number of permutations: 9999
#
#vegan::adonis2(formula = .formula, data = sampleda, permutations = permutations, method = distmethod)
#         Df SumOfSqs      R2      F Pr(>F)
#Group     1  0.23448 0.22659 3.5158  5e-04 ***
#Residual 12  0.80032 0.77341
#Total    13  1.03480 1.00000
#---
#Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1



# ("1","2","5","6","7",  "15","16","17","18","19","20",  "29","30","31","32",  "40","41","42","43","44","46")
#div.df2[div.df2 == "Group1"] <- "aged.post"
#div.df2[div.df2 == "Group3"] <- "young.post"
#div.df2[div.df2 == "Group5"] <- "aged.post"
#div.df2[div.df2 == "Group7"] <- "young.post"

# ("8","9","10","12","13","14",  "21","22","23","24","25","26","27","28",  "33","34","35","36","37","38","39","51",  "47","48","49","50","52","53","55")
#div.df2[div.df2 == "Group2"] <- "aged.pre"
#div.df2[div.df2 == "Group4"] <- "young.pre"
#div.df2[div.df2 == "Group6"] <- "aged.pre"
#div.df2[div.df2 == "Group8"] <- "young.pre"

#Group1: f.aged and post
#Group2: f.aged and pre
#Group3: f.young and post
#Group4: f.young and pre
#Group5: m.aged and post
#Group6: m.aged and pre
#Group7: m.young and post
#Group8: m.young and pre

#[,c("1","2","5","6","7",                "8","9","10","12","13","14")]
#[,c("15","16","17","18","19","20",      "21","22","23","24","25","26","27","28")]
#[,c("29","30","31","32",                "33","34","35","36","37","38","39","51")]
#[,c("40","41","42","43","44","46",      "47","48","49","50","52","53","55")]

#For the first set:
    #a6cee3: This is a light blue color, somewhat pastel and soft.
    #b2df8a: A soft, pale green, similar to a light lime.
    #fb9a99: A soft pink, slightly peachy or salmon-like.
    #cab2d6: A pale purple, reminiscent of lavender or a light mauve.
#For the second set:
    #1f78b4: This is a strong, vivid blue, close to cobalt or a medium-dark blue.
    #33a02c: A medium forest green, vibrant and leafy.
    #e31a1c: A bright red, very vivid, similar to fire engine red.
    #6a3d9a: This would be described as a deep purple, akin to a dark lavender or plum.
p1 <- mpse_abund %>%
        mp_plot_ord(
          .ord = pcoa,
          .group = Group,
          .color = Group,
          .size = 2.4,
          .alpha = 1,
          ellipse = TRUE,
          show.legend = FALSE # don't display the legend of stat_ellipse
        ) +
        scale_fill_manual(
          #values = c("#a6cee3", "#1f78b4", "#b2df8a", "#33a02c", "#fb9a99", "#e31a1c", "#cab2d6", "#6a3d9a"),
          #values = c("#a6cee3", "#b2df8a", "#fb9a99", "#cab2d6"),
          values = c("#1f78b4", "#e31a1c"),
          guide = guide_legend(keywidth=1.6, keyheight=1.6, label.theme=element_text(size=12))
        ) +
        scale_color_manual(
          #values=c("#a6cee3", "#1f78b4", "#b2df8a", "#33a02c", "#fb9a99", "#e31a1c", "#cab2d6", "#6a3d9a"),
          #values = c("#a6cee3", "#b2df8a", "#fb9a99", "#cab2d6"),
          values = c("#1f78b4", "#e31a1c"),
          guide = guide_legend(keywidth=1.6, keyheight=1.6, label.theme=element_text(size=12))
        )
        #scale_fill_manual(values=c("#FF0000", "#000000", "#0000FF", "#C0C0C0", "#00FF00", "#FFFF00", "#00FFFF", "#FFA500")) +
        #scale_color_manual(values=c("#FF0000", "#000000", "#0000FF", "#C0C0C0", "#00FF00", "#FFFF00", "#00FFFF", "#FFA500"))
        #scale_fill_manual(values=c("#00A087FF", "#3C5488FF")) +
        #scale_color_manual(values=c("#00A087FF", "#3C5488FF"))
#png("PCoA.png", width= 1000, height=1000)
#svg("PCoA.svg", width= 11, height=10)
#svg("PCoA_.svg", width=10, height=10)
#svg("PCoA.svg")
pdf("PCoA_Group2_vs_Group6.pdf")
p1
dev.off()


    #FF0000: Red
    #000000: Black
    #0000FF: Blue
    #C0C0C0: Silver
    #00FF00: Lime (often referred to simply as Green in web colors)
    #FFFF00: Yellow
    #00FFFF: Aqua (also known as Cyan)
    #FFA500: Orange
# The size of point also can be mapped to other variables such as Observe, or Shannon
# Then the alpha diversity and beta diversity will be displayed simultaneously.
p2 <- mpse_abund %>%
        mp_plot_ord(
          .ord = pcoa,
          .group = Group,
          .color = Group,
          .size = Shannon,
          .alpha = Observe,
          ellipse = TRUE,
          show.legend = FALSE # don't display the legend of stat_ellipse
        ) +
        scale_fill_manual(
          values = c("#1f78b4", "#e31a1c"),  #only needs four colors.
          #values = c("#FF0000", "#000000", "#0000FF", "#C0C0C0", "#00FF00", "#FFFF00", "#00FFFF", "#FFA500"),
          guide = guide_legend(keywidth=0.6, keyheight=0.6, label.theme=element_text(size=8))
        ) +
        scale_color_manual(
          values = c("#1f78b4", "#e31a1c"),  #only needs four colors.
          #values=c("#FF0000", "#000000", "#0000FF", "#C0C0C0", "#00FF00", "#FFFF00", "#00FFFF", "#FFA500"),
          guide = guide_legend(keywidth=0.6, keyheight=0.6, label.theme=element_text(size=8))
        ) +
        scale_size_continuous(
          range=c(0.5, 3),
          guide = guide_legend(keywidth=0.6, keyheight=0.6, label.theme=element_text(size=8))
        )
pdf("PCoA2_Group2_vs_Group6.pdf")
p2
dev.off()



# ------------------------------------------
# 3.5.3 Hierarchical cluster (tree) analysis
#input should contain hellinger!
mpse_abund %<>%
      mp_cal_clust(
        .abundance = hellinger,
        distmethod = "bray",
        hclustmethod = "average", # (UPGAE)
        action = "add" # action is used to control which result will be returned
      )
mpse_abund
mpse_abund %>% print(width=380, n=2)
#NOTE mpse_abund contains 34 varibles, no new variable, the column bray has been new calculated!

# if action = 'add', the result of hierarchical cluster will be added to the MPSE object
# mp_extract_internal_attr can extract it. It is a treedata object, so it can be visualized
# by ggtree.
sample.clust <- mpse_abund %>% mp_extract_internal_attr(name='SampleClust')
#The object contained internal attribute: PCoA ADONIS SampleClust
sample.clust
#--> The associated data tibble abstraction: 27 × 30

library(ggtree)
p <- ggtree(sample.clust) +
      geom_tippoint(aes(color=Group)) +
      geom_tiplab(as_ylab = TRUE) +
      ggplot2::scale_x_continuous(expand=c(0, 0.01))
png("hierarchical_cluster1.png", width= 1000, height=800)
p
dev.off()

#https://bioconductor.org/packages/release/bioc/vignettes/MicrobiotaProcess/inst/doc//MicrobiotaProcess.html
#         mapping = aes(x = RelRareAbundanceBySample-->Group,
#                       y = Sample-->Group,
#                       fill = Phyla
#                 ),
library(ggtreeExtra)
library(ggplot2)
# Extract relative abundance of phyla
phyla.tb <- mpse_abund %>%
            mp_extract_abundance(taxa.class=Phylum, topn=30)
# The abundance of each samples is nested, it can be flatted using the unnest of tidyr.
phyla.tb %<>% tidyr::unnest(cols=RareAbundanceBySample) %>% dplyr::rename(Phyla="label")
phyla.tb
phyla.tb %>% print(width=380, n=10)

p1 <- p +
      geom_fruit(
        data=phyla.tb,
        geom=geom_col,
        mapping = aes(x = RelRareAbundanceBySample,
                      y = Sample,
                      fill = Phyla
                ),
        orientation = "y",
        #offset = 0.4,
        pwidth = 3,
        axis.params = list(axis = "x",
                            title = "The relative abundance of phyla (%)",
                            title.size = 4,
                            text.size = 2,
                            vjust = 1),
        grid.params = list()
      )
png("hierarchical_cluster2_Phyla.png", width = 1000, height = 800)
p1
dev.off()

# Extract relative abundance of classes
class.tb <- mpse_abund %>%
            mp_extract_abundance(taxa.class = Class, topn = 30)
# Flatten and rename the columns
class.tb %<>% tidyr::unnest(cols = RareAbundanceBySample) %>% dplyr::rename(Class = "label")
# View the data frame
class.tb

# Create the plot
p1 <- p +
      geom_fruit(
        data = class.tb,
        geom = geom_col,
        mapping = aes(x = RelRareAbundanceBySample,
                      y = Sample,
                      fill = Class
                ),
        orientation = "y",
        pwidth = 3,
        axis.params = list(axis = "x",
                            title = "The relative abundance of classes (%)",
                            title.size = 4,
                            text.size = 2,
                            vjust = 1),
        grid.params = list()
      )

# Save the plot to a file  #ERROR-->NEED to be DEBUGGED!
png("hierarchical_cluster2_Class.png", width = 1000, height = 800)
print(p1)
dev.off()







# -----------------------
# 3.6 Biomarker discovery
library(ggtree)
library(ggtreeExtra)
library(ggplot2)
library(MicrobiotaProcess)
library(tidytree)
library(ggstar)
library(forcats)

#----BUG: why resulting in 26 taxa != 16 in the end ----
mpse_abund %>% print(width=150)

#mpse_abund %<>%
#    mp_cal_abundance( # for each samples
#      .abundance = RareAbundance
#    ) %>%
#    mp_cal_abundance( # for each groups
#      .abundance=RareAbundance,
#      .group=Group
#    )
#mpse_abund

mpse_abund %<>%
    mp_diff_analysis(
      .abundance = RelRareAbundanceBySample,
      .group = Group,
      first.test.alpha = 0.01, filter.p="pvalue"
    )
# The result is stored to the taxatree or otutree slot, you can use mp_extract_tree to extract the specific slot.
taxa.tree <- mpse_abund %>%
              mp_extract_tree(type="taxatree")
taxa.tree

## And the result tibble of different analysis can also be extracted with tidytree (>=0.3.5)
#LDAupper, LDAmean, LDAlower,
taxa.tree %>% select(label, nodeClass, Sign_Group, fdr)   #%>% dplyr::filter(!is.na(fdr))
taxa.tree %>% print(width=150, n=200)

# -- replace the pvalue and fdr with pvalue and p-adjusted from DESeq enrichment results --

#TODO: replace the values of pvalue and fdr in taxa.tree, with the values of pvalue and padj from sigtab, if the the tips in taxa.tree could be found in colnames(sigtab).

#tree_data <- get.data(taxa.tree)
#as.treedata(taxa.tree)

#d <- tibble(label = paste0('t', 1:4), trait = rnorm(4))
tree_data <- as_tibble(taxa.tree)
#full_join(x, d, by = 'label') %>% as.treedata

# Modify tree_data by joining with sigtab and updating Sign_Group
sigtab$label <- rownames(sigtab)
#write.xlsx(sigtab, file = "sigtab.xlsx")
sum(sigtab$padj<0.05))

#taxa.tree <- left_join(tree_data, sigtab[, c("label", "log2FoldChange", "pvalue", "padj")], by = 'label') %>% as.treedata
taxa.tree2 <- tree_data %>%
  left_join(sigtab[, c("label", "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")], by = "label") %>%
  mutate(Sign_Group = case_when(
    log2FoldChange > 0 & padj <= 0.05 ~ "Group2",
    log2FoldChange < 0 & padj <= 0.05 ~ "Group6",
    TRUE ~ NA_character_  # Sets Sign_Group to NA otherwise
  )) %>%
  as.treedata()  # Convert the dataframe to a treedata object
taxa.tree2  %>% print(width=380, n=20)

# ---- print taxa_data2 to Excel, why resulting in 26 records? ----


taxa_data2 <- as_tibble(taxa.tree2)
sum(!is.na(taxa_data2$Sign_Group))

sapply(taxa_data2, class)
# Remove or transform list columns if not needed
taxa_data2_simplified <- taxa_data2 %>%
  select(-RareAbundanceBySample, -RareAbundanceByGroup) %>%
  mutate(across(where(is.list), ~toString(.)))  # Convert lists to character strings if needed
# Replace NA with a placeholder, such as "NA" or another suitable representation
taxa_data2_simplified <- taxa_data2_simplified %>%
  mutate(across(everything(), ~ifelse(is.na(.), "NA", .)))
taxonomy_data <- as.data.frame(mp_extract_taxonomy(mpse_abund))
colnames(taxa_data2_simplified)[colnames(taxa_data2_simplified) == "label"] <- "OTU"
combined_data <- left_join(taxa_data2_simplified, taxonomy_data, by = "OTU")
library(writexl)
write_xlsx(combined_data, "taxa_data2.xlsx")



# Since taxa.tree is treedata object, it can be visualized by ggtree and ggtreeExtra
p1 <- ggtree(
        taxa.tree2,
        layout="radial",
        size = 0.3
      ) +
      geom_point(
        data = td_filter(!isTip),
        fill="white",
        size=1,
        shape=21
      )
# display the high light of phylum clade.
p2 <- p1 +
      geom_hilight(
        data = td_filter(nodeClass == "Phylum"),
        mapping = aes(node = node, fill = label)
      )
# display the relative abundance of features(OTU)
p3 <- p2 +
      ggnewscale::new_scale("fill") +
      geom_fruit(
        data = td_unnest(RareAbundanceBySample),
        geom = geom_star,
        mapping = aes(
                      x = fct_reorder(Sample, Group, .fun=min),
                      size = RelRareAbundanceBySample,
                      fill = Group,
                      subset = RelRareAbundanceBySample > 0
                  ),
        starshape = 13,
        starstroke = 0.25,
        offset = 0.03,
        pwidth = 0.4,
        grid.params = list(linetype=2)
      ) +
      scale_size_continuous(
        name="Relative Abundance (%)",
        range = c(.5, 3)
      ) +
      scale_fill_manual(values=c("#1B9E77", "#D95F02"))

# display the tip labels of taxa tree
p4 <- p3 + geom_tiplab(size=6, offset=4.0)
# display the LDA of significant OTU.
#p5 <- p4 +
#      ggnewscale::new_scale("fill") +
#      geom_fruit(
#         geom = geom_col,
#         mapping = aes(
#                       x = LDAmean,
#                       fill = Sign_Group,
#                       subset = !is.na(LDAmean)
#                       ),
#         orientation = "y",
#         offset = 0.3,
#         pwidth = 0.5,
#         axis.params = list(axis = "x",
#                            title = "Log10(LDA)",
#                            title.height = 0.01,
#                            title.size = 2,
#                            text.size = 1.8,
#                            vjust = 1),
#         grid.params = list(linetype = 2)
#      )

# display the significant (FDR-->pvalue-->padj) taxonomy after kruskal.test (default)
#shape = 21,
#scale_size_continuous(range=c(1, 3)) +
p6 <- p4 +
      ggnewscale::new_scale("size") +
      geom_point(
        data=td_filter(!is.na(Sign_Group)),
        mapping = aes(size = -log10(padj),
                      fill = Sign_Group,
                      ),
        shape = 21,
      ) +
      scale_size_continuous(range=c(1, 4)) +
      scale_fill_manual(values=c("#1B9E77", "#D95F02"))

svg("diff_analysis_Group2_vs_Group6.svg",width=22, height=22)
#png("differently_expressed_otu.png", width=2000, height=2000)
p6 + theme(
          legend.key.height = unit(1.0, "cm"),
          legend.key.width = unit(1.0, "cm"),
          legend.spacing.y = unit(0.01, "cm"),
          legend.text = element_text(size = 20),
          legend.title = element_text(size = 20)
          #legend.position = c(0.99, 0.01)
          )
dev.off()

like unlike

点赞本文的读者

还没有人对此文章表态


本文有评论

没有评论

看文章,发评论,不要沉默


© 2023 XGenes.com Impressum
