Peak and Motif analyses in Promoters

gene_x 0 like s 572 view s

Tags: pipeline, ChIP-seq

  • ./1_generate_promoter_sequences.py gencode.v43.annotation.gtf.db

    1_generate_promoter_sequences.py

  • ./2_find_motifs_in_promoters.py

    2_find_motifs_in_promoters.py

  • generate peaks_and_motifs_in_promoters_with_LT_peak.xls

    Input file

    plot_peaks.py

    add_peaks_to_motifs.py

    peaks_and_motifs_in_promoters_with_LT_peak.xls

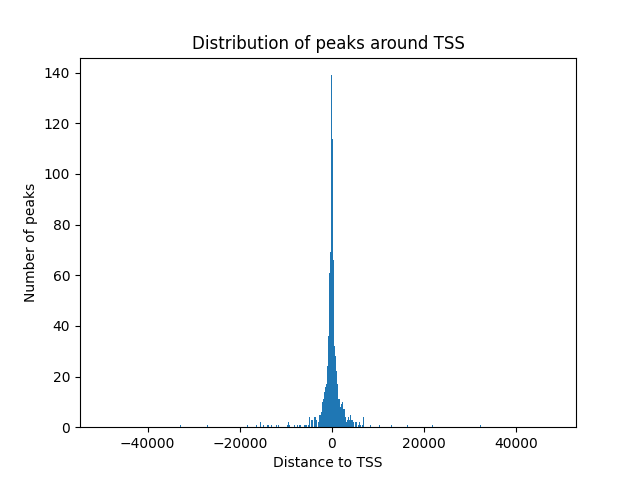

    peak_distribution

    #--3.1. generate peak_tss_distances.csv and peak_tss_distances.png
python3 plot_peaks.py peaks_NHDF_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db /ref/Homo_sapiens/UCSC/hg38/Sequence/WholeGenomeFasta/genome.fa
python3 plot_peaks.py peaks_HEK293_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db /ref/Homo_sapiens/UCSC/hg38/Sequence/WholeGenomeFasta/genome.fa
python3 plot_peaks.py peaks_PFSK-1_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db /ref/Homo_sapiens/UCSC/hg38/Sequence/WholeGenomeFasta/genome.fa
python3 plot_peaks.py peaks_K331A_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db /ref/Homo_sapiens/UCSC/hg38/Sequence/WholeGenomeFasta/genome.fa

#--3.2. split data into two dataframe, one is in which PromoterID occurres in filtered_peaks$Closest.Gene..Ensemble.ID., another is the remaining
#sed -i 's/[][]//g' motif_counts_positions.txt
data <- read.table("motif_counts_positions.txt", sep="\t", header=TRUE, stringsAsFactors=FALSE)

# Read the data
peaks <- read.table("peak_tss_distances.txt", sep="\t", header=TRUE, stringsAsFactors=FALSE)
# Filter the rows
filtered_peaks <- subset(peaks, abs(`Distance.to.TSS`) <= 3000)
# Print the filtered peaks
write.table(filtered_peaks, file="filtered_peak_tss_distances.txt", sep="\t", row.names = FALSE)

# Create a new data frame for rows in 'data' where the PromoterID is in filtered_peaks's Closest Gene (Ensemble ID)
data_in_filtered <- data[data$PromoterID %in% filtered_peaks$Closest.Gene..Ensemble.ID., ]
data_in_filtered$Motif_GRGGC_Center_Positions <- sapply(data_in_filtered$Motif_GRGGC_Center_Positions, toString)
data_in_filtered$Motif_GCCYR_Center_Positions <- sapply(data_in_filtered$Motif_GCCYR_Center_Positions, toString)
write.table(data_in_filtered, file="motifs_in_promoters_with_LT_peak.txt", sep="\t", row.names = FALSE)
# Create another data frame for the remaining rows
data_not_in_filtered <- data[!data$PromoterID %in% filtered_peaks$Closest.Gene..Ensemble.ID., ]
data_not_in_filtered$Motif_GRGGC_Center_Positions <- sapply(data_not_in_filtered$Motif_GRGGC_Center_Positions, toString)
data_not_in_filtered$Motif_GCCYR_Center_Positions <- sapply(data_not_in_filtered$Motif_GCCYR_Center_Positions, toString)
write.table(data_not_in_filtered, file="motifs_in_promoters_without_LT_peak.txt", sep="\t", row.names = FALSE)
#780 vs 19262
#1707 vs ca. 60000
#sed -i 's/Symbol: //g' motifs_in_promoters_with_LT_peak.txt
#sed -i 's/Type: //g' motifs_in_promoters_with_LT_peak.txt
#sed -i 's/Symbol: //g' motifs_in_promoters_without_LT_peak.txt
#sed -i 's/Type: //g' motifs_in_promoters_without_LT_peak.txt
#sed -i 's/"//g' motifs_in_promoters_with_LT_peak.txt
#sed -i 's/"//g' motifs_in_promoters_without_LT_peak.txt

#--3.3. prepare data for motifs_in_promoters_with_LT_peak.txt
data1 <- read.table("motifs_in_promoters_with_LT_peak.txt", sep="\t", header=TRUE, stringsAsFactors=FALSE)

data1$Motif_GRGGC_Count <- as.numeric(data1$Motif_GRGGC_Count)
data1$Motif_GCCYR_Count <- as.numeric(data1$Motif_GCCYR_Count)
data1$Motif_GRGGC_Center_Positions <- strsplit(as.character(data1$Motif_GRGGC_Center_Positions), ",")
data1$Motif_GCCYR_Center_Positions <- strsplit(as.character(data1$Motif_GCCYR_Center_Positions), ",")
# Create data1 frames for each motif
data1_motif1 <- data.frame(PromoterID = rep(data1$PromoterID, data1$Motif_GRGGC_Count),
                          Motif = "Motif GRGGC",
                          Position = unlist(data1$Motif_GRGGC_Center_Positions))
data1_motif2 <- data.frame(PromoterID = rep(data1$PromoterID, data1$Motif_GCCYR_Count),
                          Motif = "Motif GCCYR",
                          Position = unlist(data1$Motif_GCCYR_Center_Positions))
# Combine motif data1 frames
data1_positions <- rbind(data1_motif1, data1_motif2)
# Get positions as numeric values, excluding NAs
motif1_positions_with_LT_peak <- as.numeric(data1_positions$Position[data1_positions$Motif == "Motif GRGGC"])
motif2_positions_with_LT_peak <- as.numeric(data1_positions$Position[data1_positions$Motif == "Motif GCCYR"])

#--3.4. prepare data for motifs_in_promoters_without_LT_peak.txt
data2 <- read.table("motifs_in_promoters_without_LT_peak.txt", sep="\t", header=TRUE, stringsAsFactors=FALSE)
data2$Motif_GRGGC_Count <- as.numeric(data2$Motif_GRGGC_Count)
data2$Motif_GCCYR_Count <- as.numeric(data2$Motif_GCCYR_Count)
data2$Motif_GRGGC_Center_Positions <- strsplit(as.character(data2$Motif_GRGGC_Center_Positions), ",")
data2$Motif_GCCYR_Center_Positions <- strsplit(as.character(data2$Motif_GCCYR_Center_Positions), ",")
# Create data2 frames for each motif
data2_motif1 <- data.frame(PromoterID = rep(data2$PromoterID, data2$Motif_GRGGC_Count),
                          Motif = "Motif GRGGC",
                          Position = unlist(data2$Motif_GRGGC_Center_Positions))
data2_motif2 <- data.frame(PromoterID = rep(data2$PromoterID, data2$Motif_GCCYR_Count),
                          Motif = "Motif GCCYR",
                          Position = unlist(data2$Motif_GCCYR_Center_Positions))
# Combine motif data2 frames
data2_positions <- rbind(data2_motif1, data2_motif2)

# Get positions as numeric values, excluding NAs
motif1_positions_without_LT_peak <- as.numeric(data2_positions$Position[data2_positions$Motif == "Motif GRGGC"])
motif2_positions_without_LT_peak <- as.numeric(data2_positions$Position[data2_positions$Motif == "Motif GCCYR"])

#--3.5. Plot Histogram of counts and density of positions
# Define a common x-axis limit for all plots
x_limit <- max(max(data1$Motif_GRGGC_Count), max(data1$Motif_GCCYR_Count), max(data2$Motif_GRGGC_Count), max(data2$Motif_GCCYR_Count))
# Adjust the number of breaks (nbins) to control the width of histograms
nbins <- 30

y_limit1 <- 300
y_limit2 <- 12000
# Plot Histogram of counts with the same scale for x-axis
png("Histogram_of_Motif_GRGGC_in_promoters_with_LT_peak.png", width=800, height=800)
hist(data1$Motif_GRGGC_Count, main = "Histogram of Motif GRGGC in promoters with LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit1), breaks = 20)
dev.off()
png("Histogram_of_Motif_GRGGC_in_promoters_without_LT_peak.png", width=800, height=800)
hist(data2$Motif_GRGGC_Count, main = "Histogram of Motif GRGGC in promoters without LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit2), breaks = nbins)
dev.off()
png("Histogram_of_Motif_GCCYR_in_promoters_with_LT_peak.png", width=800, height=800)
hist(data1$Motif_GCCYR_Count, main = "Histogram of Motif GCCYR in promoters with LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit1), breaks = nbins)
dev.off()
png("Histogram_of_Motif_GCCYR_in_promoters_without_LT_peak.png", width=800, height=800)
hist(data2$Motif_GCCYR_Count, main = "Histogram of Motif GCCYR in promoters without LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit2), breaks = nbins)
dev.off()

# Set up the layout for the plots
png("Histogram_of_Motifs.png", width = 1000, height = 1000)
par(mfrow = c(2, 2))
hist(data1$Motif_GRGGC_Count, main = "Motif GRGGC Counts with LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit1), breaks = 20)
hist(data2$Motif_GRGGC_Count, main = "Motif GRGGC Counts without LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit2), breaks = nbins)
hist(data1$Motif_GCCYR_Count, main = "Motif GCCYR Counts with LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit1), breaks = nbins)
hist(data2$Motif_GCCYR_Count, main = "Motif GCCYR Counts without LT peak", xlab = "Counts", xlim = c(0, x_limit), ylim = c(0, y_limit2), breaks = nbins)
dev.off()

# Set the ylim value
ylim <- c(0.0001, 0.0003)
png("Density_of_Motif_GRGGC_in_promoters_with_LT_peak.png", width=800, height=800)
plot(density(motif1_positions_with_LT_peak, na.rm = TRUE), main="Density of GRGGC in promoters with LT peak", xlab="Position", ylim = ylim)
dev.off()
png("Density_of_Motif_GRGGC_in_promoters_without_LT_peak.png", width=800, height=800)
plot(density(motif1_positions_without_LT_peak, na.rm = TRUE), main="Density of GRGGC in promoters without LT peak", xlab="Position", ylim = ylim)
dev.off()
png("Density_of_Motif_GCCYR_in_promoters_with_LT_peak.png", width=800, height=800)
plot(density(motif2_positions_with_LT_peak, na.rm = TRUE), main="Density of GCCYR in promoters with LT peak", xlab="Position", ylim = ylim)
dev.off()
png("Density_of_Motif_GCCYR_in_promoters_without_LT_peak.png", width=800, height=800)
plot(density(motif2_positions_without_LT_peak, na.rm = TRUE), main="Density of GCCYR in promoters without LT peak", xlab="Position", ylim = ylim)
dev.off()

png("Density_of_Motifs.png", width = 1000, height = 1000)
par(mfrow = c(2, 2))
plot(density(motif1_positions_with_LT_peak, na.rm = TRUE), main = "Density of GRGGC in promoters with LT peak", xlab = "Position", ylim = ylim)
plot(density(motif1_positions_without_LT_peak, na.rm = TRUE), main = "Density of GRGGC in promoters without LT peak", xlab = "Position", ylim = ylim)
plot(density(motif2_positions_with_LT_peak, na.rm = TRUE), main = "Density of GCCYR in promoters with LT peak", xlab = "Position", ylim = ylim)
plot(density(motif2_positions_without_LT_peak, na.rm = TRUE), main = "Density of GCCYR in promoters without LT peak", xlab = "Position", ylim = ylim)
dev.off()

#--3.6. assign each promoter to a prefined class according to Motifs_Count and Avg_Distance_To_TSS_of_Motifs
library(dplyr)
data <- read.table("motifs_in_promoters_with_LT_peak.txt", sep="\t", header=TRUE, stringsAsFactors=FALSE)
data$Motif_GRGGC_Count <- as.numeric(data$Motif_GRGGC_Count)
data$Motif_GCCYR_Count <- as.numeric(data$Motif_GCCYR_Count)
# Add a column for the sum of Motif_GRGGC_Count and Motif_GCCYR_Count
data <- data %>%
  mutate(Motifs_Count = Motif_GRGGC_Count + Motif_GCCYR_Count)
# Calculate absolute average Motif_GRGGC distance to TSS
data$Avg_Distance_To_TSS_of_Motif_GRGGC <- sapply(strsplit(data$Motif_GRGGC_Center_Positions, ", "),
                                         function(x) round(mean(as.numeric(x), na.rm = TRUE)))
# Calculate absolute average Motif_GCCYR distance to TSS
data$Avg_Distance_To_TSS_of_Motif_GCCYR <- sapply(strsplit(data$Motif_GCCYR_Center_Positions, ", "),
                                         function(x) round(mean(as.numeric(x), na.rm = TRUE)))
# Revised function to calculate the mean of two strings of comma-separated numbers
mean_of_strings <- function(str1, str2) {
  # Convert strings of numbers to numeric vectors
  vec1 <- as.numeric(strsplit(str1, split = ",")[[1]])
  vec2 <- as.numeric(strsplit(str2, split = ",")[[1]])
  # Handle cases where vec1 or vec2 is NULL (i.e., when str1 or str2 is an empty string)
  if (is.null(vec1)) {
    vec1 <- numeric(0)
  }
  if (is.null(vec2)) {
    vec2 <- numeric(0)
  }
  # Compute the mean of the two vectors
  return(round(mean(c(vec1, vec2), na.rm = TRUE)))
}
# Apply the function to each row of the dataframe
data$Avg_Distance_To_TSS_of_Motifs <- mapply(mean_of_strings, data$Motif_GRGGC_Center_Positions, data$Motif_GCCYR_Center_Positions)
# Assign classes based on the given rules
data <- data %>%
  mutate(
    Class_based_Motif_GRGGC = case_when(
      Motif_GRGGC_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 500 ~ "Class 1",
      Motif_GRGGC_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 1000 ~ "Class 2",
      Motif_GRGGC_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 1000 ~ "Class 3",
      Motif_GRGGC_Count >= 50 & Motif_GRGGC_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 500 ~ "Class 4",
      Motif_GRGGC_Count >= 50 & Motif_GRGGC_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 1000 ~ "Class 5",
      Motif_GRGGC_Count >= 50 & Motif_GRGGC_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 1000 ~ "Class 6",
      Motif_GRGGC_Count >= 100 & Motif_GRGGC_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 500 ~ "Class 7",
      Motif_GRGGC_Count >= 100 & Motif_GRGGC_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) <= 1000 ~ "Class 8",
      Motif_GRGGC_Count >= 100 & Motif_GRGGC_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GRGGC) > 1000 ~ "Class 9"
    )
  )
data <- data %>%
  mutate(
    Class_based_Motif_GCCYR = case_when(
      Motif_GCCYR_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 500 ~ "Class 1",
      Motif_GCCYR_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 1000 ~ "Class 2",
      Motif_GCCYR_Count < 50 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 1000 ~ "Class 3",
      Motif_GCCYR_Count >= 50 & Motif_GCCYR_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 500 ~ "Class 4",
      Motif_GCCYR_Count >= 50 & Motif_GCCYR_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 1000 ~ "Class 5",
      Motif_GCCYR_Count >= 50 & Motif_GCCYR_Count < 100 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 1000 ~ "Class 6",
      Motif_GCCYR_Count >= 100 & Motif_GCCYR_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 500 ~ "Class 7",
      Motif_GCCYR_Count >= 100 & Motif_GCCYR_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 500 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) <= 1000 ~ "Class 8",
      Motif_GCCYR_Count >= 100 & Motif_GCCYR_Count < 150 & abs(Avg_Distance_To_TSS_of_Motif_GCCYR) > 1000 ~ "Class 9"
    )
  )
data <- data %>%
  mutate(
    Class_based_Motifs = case_when(
      Motifs_Count < 50 & abs(Avg_Distance_To_TSS_of_Motifs) <= 500 ~ "Class 1",
      Motifs_Count < 50 & abs(Avg_Distance_To_TSS_of_Motifs) > 500 & abs(Avg_Distance_To_TSS_of_Motifs) <= 1000 ~ "Class 2",
      Motifs_Count < 50 & abs(Avg_Distance_To_TSS_of_Motifs) > 1000 ~ "Class 3",
      Motifs_Count >= 50 & Motifs_Count < 100 & abs(Avg_Distance_To_TSS_of_Motifs) <= 500 ~ "Class 4",
      Motifs_Count >= 50 & Motifs_Count < 100 & abs(Avg_Distance_To_TSS_of_Motifs) > 500 & abs(Avg_Distance_To_TSS_of_Motifs) <= 1000 ~ "Class 5",
      Motifs_Count >= 50 & Motifs_Count < 100 & abs(Avg_Distance_To_TSS_of_Motifs) > 1000 ~ "Class 6",
      Motifs_Count >= 100 & Motifs_Count < 150 & abs(Avg_Distance_To_TSS_of_Motifs) <= 500 ~ "Class 7",
      Motifs_Count >= 100 & Motifs_Count < 150 & abs(Avg_Distance_To_TSS_of_Motifs) > 500 & abs(Avg_Distance_To_TSS_of_Motifs) <= 1000 ~ "Class 8",
      Motifs_Count >= 100 & Motifs_Count < 150 & abs(Avg_Distance_To_TSS_of_Motifs) > 1000 ~ "Class 9"
    )
  )
# Define the desired column order
desired_columns <- c("PromoterID","Gene_Symbol","Gene_Type","Motif_GRGGC_Count","Motif_GRGGC_Center_Positions","Avg_Distance_To_TSS_of_Motif_GRGGC","Class_based_Motif_GRGGC",  "Motif_GCCYR_Count","Motif_GCCYR_Center_Positions","Avg_Distance_To_TSS_of_Motif_GCCYR","Class_based_Motif_GCCYR",  "Motifs_Count","Avg_Distance_To_TSS_of_Motifs","Class_based_Motifs")
# Reorder the columns
data <- select(data, all_of(desired_columns))
#sed -i 's/Motifs/Motifs_GRGGC+GCCYR/g' motifs_in_promoters_with_LT_peak_Category.txt
write.table(data, file="motifs_in_promoters_with_LT_peak_Category.txt", sep="\t", row.names = FALSE)

#--3.7. add peak information into motif table
./add_peaks_to_motifs.py
#~/Tools/csv2xls-0.4/csv_to_xls.py _peaks_and_motifs_in_promoters_with_LT_peak.txt peak_tss_distances.txt -d$'\t' -o peaks_and_motifs_in_promoters_with_LT_peak.xls;
#rename the name of sheet1 to "peaks_and_motifs_in_promoters_with_LT_peak" and "all_LT_peaks_NHDF"

  • plot_peaks.py (updated code)

  • plot_peaks.py (updated code)

    #python3 plot_peaks.py peaks_NHDF_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db
#mv peak_tss_distances.xlsx peak_tss_distances_NHDF.xlsx
#mv peak_tss_distances.txt peak_tss_distances_NHDF.txt
#mv peak_distribution.csv peak_distribution_NHDF.csv
#mv peak_distribution.png peak_distribution_NHDF.png
#python3 plot_peaks.py peaks_HEK293_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db
#mv peak_tss_distances.xlsx peak_tss_distances_HEK293.xlsx
#mv peak_tss_distances.txt peak_tss_distances_HEK293.txt
#mv peak_distribution.csv peak_distribution_HEK293.csv
#mv peak_distribution.png peak_distribution_HEK293.png
#python3 plot_peaks.py peaks_PFSK-1_.bed /home/jhuang/REFs/gencode.v43.annotation.gtf.db
#mv peak_tss_distances.xlsx peak_tss_distances_PFSK-1.xlsx
#mv peak_tss_distances.txt peak_tss_distances_PFSK-1.txt
#mv peak_distribution.csv peak_distribution_PFSK-1.csv
#mv peak_distribution.png peak_distribution_PFSK-1.png

import pprint
import argparse
import matplotlib.pyplot as plt
import pandas as pd
import gffutils
import numpy as np

def plot_peak_distribution(peaks_file, gencode_db):
    db = gffutils.FeatureDB(gencode_db, keep_order=True)
    peaks = pd.read_table(peaks_file, header=None)
    peaks.columns = ['chrom', 'start', 'end', 'name', 'score']
    tss_positions = []
    tss_genes = []
    for gene in db.features_of_type('gene'):
        if gene.strand == '+':
            tss_positions.append(gene.start)
        else:
            tss_positions.append(gene.end)
        tss_genes.append(gene)
    peak_tss_distances = []
    peak_names = []
    closest_genes = []
    closest_gene_names = []
    closest_strands = []
    closest_gene_types = []  # New list for gene_type

    for _, peak in peaks.iterrows():
        peak_center = (peak['start'] + peak['end']) // 2
        closest_tss_index = np.argmin([abs(tss - peak_center) for tss in tss_positions])
        distance_to_tss = peak_center - tss_positions[closest_tss_index]
        peak_tss_distances.append(distance_to_tss)
        peak_names.append(peak['name'])
        closest_genes.append(tss_genes[closest_tss_index].id)
        if 'gene_name' in tss_genes[closest_tss_index].attributes:
            closest_gene_name = tss_genes[closest_tss_index].attributes['gene_name'][0]
        else:
            closest_gene_name = 'N/A'  # Set a default value if 'gene_name' attribute is not present
        closest_gene_names.append(closest_gene_name)
        closest_strands.append(tss_genes[closest_tss_index].strand)

        if 'gene_type' in tss_genes[closest_tss_index].attributes:
            closest_gene_type = tss_genes[closest_tss_index].attributes['gene_type'][0]
        else:
            closest_gene_type = 'N/A'  # Set a default value if 'gene_type' attribute is not present
        closest_gene_types.append(closest_gene_type)

    df = pd.DataFrame({
        'Peak Name': peak_names,
        'Distance to TSS': peak_tss_distances,
        'Closest Gene (Ensemble ID)': closest_genes,
        'Closest Gene (Gene name)': closest_gene_names,
        'Gene Strand': closest_strands,
        'Gene Type': closest_gene_types  # Add new column for gene_type
    })

    df.to_excel('peak_tss_distances.xlsx', index=False)
    df.to_csv('peak_tss_distances.txt', sep='\t', index=False)  # Save as tab-separated text file
    bins_no=600   #1000 for nHDF, 600 for HEK293 and PFSK-1
    counts, bin_edges = np.histogram(peak_tss_distances, bins=bins_no)
    bin_centers = (bin_edges[:-1] + bin_edges[1:]) / 2
    hist_df = pd.DataFrame({'Bin Center': bin_centers, 'Count': counts})
    hist_df.to_csv('peak_distribution.csv', index=False)
    total_peaks = hist_df['Count'].sum()
    with open('peak_distribution.csv', 'a') as f:
        f.write(f'\nTotal number of peaks: {total_peaks}')

    # Set the figure background to be transparent
    plt.gcf().set_facecolor('none')
    plt.gcf().patch.set_alpha(0.0)

    plt.hist(peak_tss_distances, bins=bins_no)

    plt.xlabel('Distance to TSS', fontsize=17)
    plt.ylabel('Number of peaks', fontsize=17)
    plt.title('')
    #plt.title('Distribution of peaks around TSS', fontsize=12)

    # Set tick label font sizes
    plt.xticks(fontsize=14)
    plt.yticks(fontsize=14)

    # Adjust the space on the left of the figure
    plt.gcf().subplots_adjust(left=0.15)

    # Set x-axis range
    plt.xlim(-8000, 8000)

    plt.savefig('peak_distribution.png', dpi=300, bbox_inches='tight')
    plt.show()

if __name__ == "__main__":
    parser = argparse.ArgumentParser(description='Plot peak distribution around TSS.')
    parser.add_argument('peaks_file', type=str, help='Path to the peaks.bed file')
    parser.add_argument('gencode_db', type=str, help='Path to the gencode.v43.annotation.db file')
    args = parser.parse_args()
    plot_peak_distribution(args.peaks_file, args.gencode_db)

like unlike

点赞本文的读者

还没有人对此文章表态

本文有评论

没有评论

看文章，发评论，不要沉默

最受欢迎文章

  1. Why Do Significant Gene Lists Change After Adding Additional Conditions in Differential Gene Expression Analysis?
  2. Updating Human Gene Identifiers using Ensembl BioMart: A Step-by-Step Guide
  3. Setup conda environments
  4. 洛那法尼(lonafarnib)：从抗癌症到抗病毒的多功能药物
  5. pheatmap vs heatmap.2
  6. File format for single channel analysis of Agilent microarray data with Limma?
  7. Motif Discovery in Biological Sequences: A Comparison of MEME and HOMER
  8. RNAseq running with umi_tools
  9. Guide to Submitting Data to GEO (Gene Expression Omnibus)
  10. The top 10 genes

最新文章

最多评论文章

推荐相似文章

ChIP-seq using HOMER (-stype histone, macs2 or SICER + custom getDifferentialPeaksReplicates_broad[narrow].pl)

Peak calling using homer combining sicer and macs2

H3K4me3, H3K27me3 and TF

How to use H3K27ac, H3K4me1, and RNA-seq to identify enhancers and their target genes?

© 2023 XGenes.com Impressum
